SEEDCIRCUIT [1]; Drawings, Plans & In-Progress Shots
![]() Original drawing | ![]() | ![]() |
---|---|---|
![]() Pattern for Osage Orange cube | ![]() Pattern for Paduak cube | ![]() Pattern for Purple Heart cube |
![]() Making the (1st of several) silicon mold | ![]() Mold curing | ![]() Mold complete |
![]() Test casting cubes | ![]() 1st jig to center the wood cube in the mold | ![]() Cube centering jig in mold |

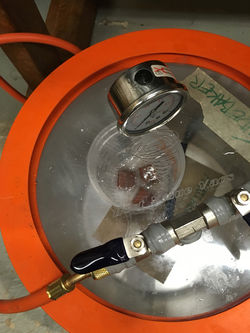

![]() Wood cubes in-progress | ![]() Vacuum chamber; sucks all the air out of the resin after mixing and before curing | ![]() Pressure tank (for casting); removes any residual bubbles in the resin by crushing them down to micro-size while resin cures |
![]() I made several resin-mixers for use in my drill | ![]() Studio casting set-up (with the old crappy pressure tank) | ![]() I had to make SO MANY cubes to get 5 good ones |
![]() Cube polishing | ![]() Beautiful completed cubes! | ![]() Holders in progress |
![]() | ![]() | ![]() Welding the aluminum holders |
![]() | ![]() Tapping the holders (so they can be screwed to the wall pedestal) | ![]() |
![]() | ![]() | ![]() |

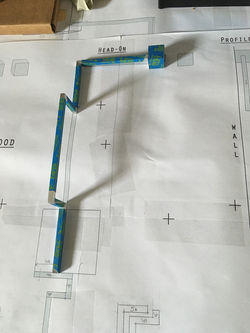

![]() | ![]() | ![]() Holders and cubes test layout for wall pedestal |
![]() Pattern made from test-layout of holders | ![]() Pattern made from the test-layouts of holders; used to transfer hole placement to wall pedestal | ![]() |
![]() All the holders sealed and pretty | ![]() Sealing the aluminum | ![]() Final pedestal test |
![]() Installing the back-light | ![]() Back of the wall pedestal |
